Casement Door
Hinged glazed door — 80 mm Semi-Commercial or 100 mm Thermally Broken

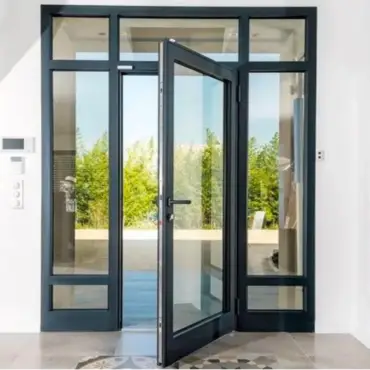

A casement door is side-hinged and swings open like a traditional door, but with a full glass panel set into a slim aluminium frame. Single-leaf for narrower openings, double-leaf (French-style) for wider apertures.
Suited to entries, courtyards and any opening where you want a traditional swing motion paired with the daylight of a fully glazed panel.
- ●Hinged (swing)
- ●80mm (CWD80) · 100mm (CWD100)
- ●Double-Glazed Std.
- ●AS/NZS 2208
- ●CWD80 · CWD100
The difference is in the detail.
Light Without Compromise
A full glass panel in a slim aluminium frame — natural light reaches deep into the room while the door itself stays visually quiet.
Single or Double Leaf

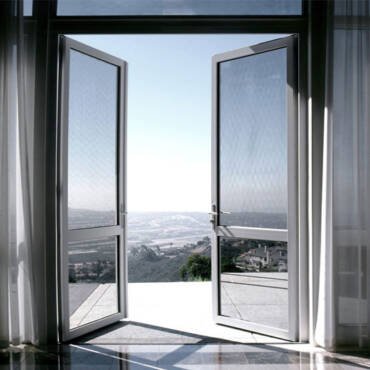

One leaf for narrower openings, two for French-door pairs across wider apertures. Hinged left, right or split.
Multi-Point Locking
Premium SIEGENIA / Roto hardware with multi-point engagement — secure when closed, smooth when opened.
Built to standard.
- Model
- CWD80 · CWD100
- Opening Style
- Hinged (swing)
- Profile Thickness
- 1.8mm – 2.0mm
- Profile Width
- 80mm (CWD80) · 100mm (CWD100)
- Glass Options
- 5mm + 12A + 5mm / 6mm + 12A + 6mm tempered
- Glass Standard
- AS/NZS 2208
- Extrusion Profile
- 6063-T5 Aluminium (CWD100: thermally broken)
- Standard Hardware
- Multi-point hinged hardware — SIEGENIA (DE) / Roto (DE)
Glass Types
- Tempered
- Toughened
- Coated
- LOW-E
Glass Colours
- Clear
- Grey
- Blue
- Green
- Custom
Profile Colours
- Matt Black
- Monument
- White
Flyscreen Options
- Aluminium
- Fiberglass
- Stainless Steel
- Waterproof
- Heat / Cold resistance
- Soundproof
- Wind resistance
- Airtight
- Safe
Residential · Commercial · Hospitality · Healthcare · School · Municipal
Two series to choose from
80 mm Semi-Commercial Series (CWD80) — a standard aluminium frame, double-glazed and well-sealed, suited to most residential and semi-commercial entries.
100 mm Thermally Broken Windows (CWD100) — a thermally broken 100mm frame that minimises heat transfer, for projects targeting the highest energy performance.
For specifiers & builders.
Cross-section and installation detail sheets for both frame series. PDF — open in a new tab.
