Thermal Break Window
Built for Australia's 7-star future

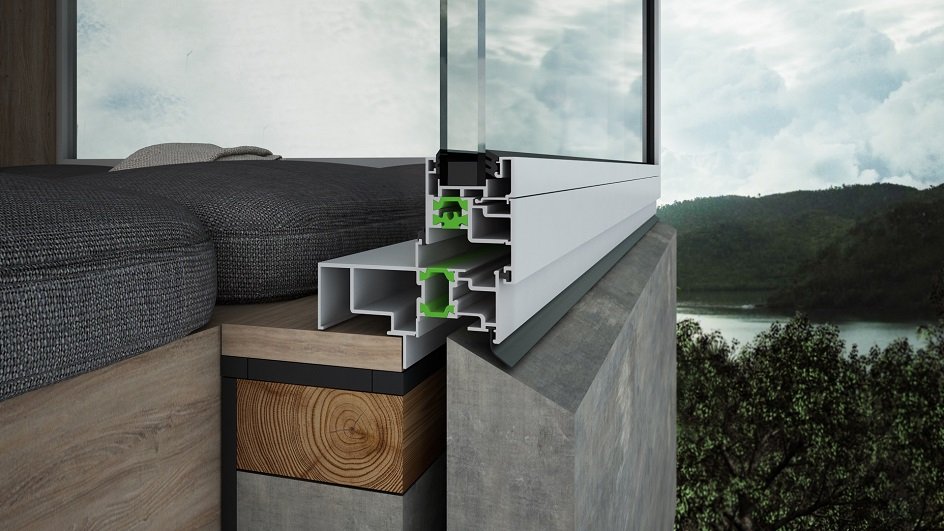

Aluminium conducts heat. Without intervention, a metal window frame becomes a thermal bridge that pulls warmth out in winter and lets it in during summer. A thermal break solves this — a strip of reinforced polyamide is engineered into the frame, separating its inside and outside faces. The result is a window that performs more like timber but lasts like aluminium.
We supply premium thermal-break frames manufactured in Europe, paired with double or triple glazing as standard, and tuned for Australian climates — Canberra's frosty mornings, Sydney's summer afternoons, and everything in between.
- ●Awning · Sliding · Fixed (configurable)
- ●100mm
- ●Double-Glazed Std.
- ●AS/NZS 2208
- ●CWD100
The difference is in the detail.
Greater Energy Efficiency
The polyamide barrier dramatically reduces heat transfer through the frame, keeping warm air in during winter and out during summer. Lower heating and cooling load, lower running costs.
Year-Round Comfort
No more cold-spot zones near windows in July, no more sun-baked frames in January. Surface temperatures stay closer to room temperature across the entire opening.
Less Condensation
Cold aluminium plus warm interior air equals fog and dripping sills. A thermal break keeps the inside face of the frame warmer, so moisture has nowhere to form. Better for the home, better for the frame.
Long-Term Durability
Premium-grade aluminium resists warping, corrosion and weathering far longer than timber or uPVC. The polyamide insert is stable across decades of temperature swings.
Built to standard.
- Model
- CWD100
- Opening Style
- Awning · Sliding · Fixed (configurable)
- Profile Thickness
- 2.0mm
- Profile Width
- 100mm
- Glass Options
- Double-glazed 5+12A+5 standard · Triple glazing on request
- Glass Standard
- AS/NZS 2208
- Extrusion Profile
- 6063-T5 Aluminium with reinforced polyamide thermal break
- Standard Hardware
- SIEGENIA (DE) / Roto (DE)
Glass Types
- Double-glazed
- Triple-glazed
- LOW-E
- Acoustic
- Solar control
Glass Colours
- Clear
- Grey
- Blue
- Green
- Custom
Profile Colours
- Matt Black
- Monument
- White
Flyscreen Options
- Aluminium
- Fiberglass
- Stainless Steel
- Thermal-broken
- Heat / Cold resistance
- Soundproof
- Wind resistance
- Airtight
- Safe
Residential · Commercial · Hospitality · Healthcare · School · Municipal
Built for Australia's 7-star future
In 2022, the National Construction Code lifted the residential energy performance requirement from 6 to 7 stars under NatHERS — a meaningful jump, particularly in cooler regions like the ACT and Sydney's western suburbs.
Standard single-glazed aluminium frames make 7 stars genuinely difficult to hit. Thermal-broken frames with double or triple glazing make it routine. If you're building, renovating or specifying for compliance, this is the frame system designed for the regulation, not retrofitted to it.
When thermal break matters most
Canberra: every degree of indoor warmth lost through cheap frames in July is a heating bill paid in August. Thermal-broken frames pay back fastest in cold-winter climates.
Sydney: summer heat gain through aluminium frames pushes air-conditioning loads up dramatically. A thermal break flattens the curve and reduces peak cooling demand.
New builds: meet 7-star NatHERS without compromising on natural light or window size.
Renovations: replacing single-glazed aluminium with thermal-broken frames is one of the highest-ROI upgrades for thermal comfort.
Premium European supply, fair Australian pricing
We import directly from established European manufacturers and supply across Canberra and Sydney without the distributor markup that inflates trade-channel pricing. Same product, considered design, sensible price.
